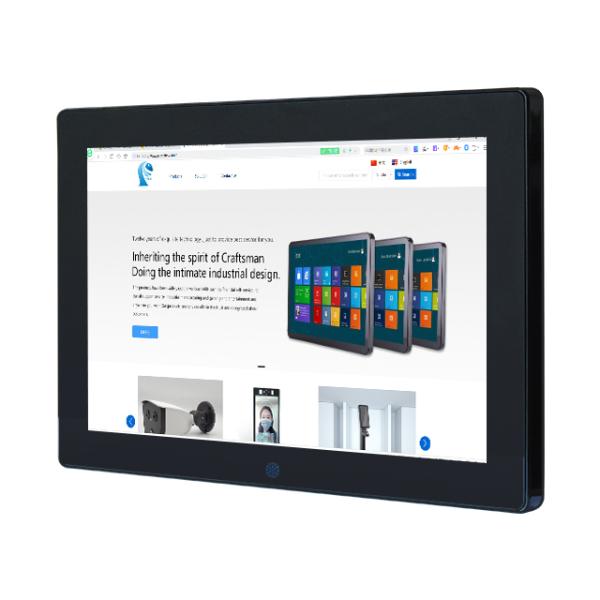

all in one computer touch panel pc industrial with 1920*1080
resolution
Product Description:
Touch Panel PC is an all-in-one embedded industrial PC designed for
various applications. It is IP65 waterproof, dust-proof, and
shock-proof, and features a high-performance Intel Core Processor,
which provides powerful performance and low power consumption. It
is suitable for various industrial applications, such as factory
automation, medical equipment, retail/hospitality, kiosks, and
more. The product comes with a range of RAM options, including 4GB,
8GB, and 16GB, and displays with LED, IPS, and OLED technology.
Additionally, you can select from Windows, Android, and Linux
operating systems, and customize the size to fit your needs. With
its rugged design and reliable performance, Touch Panel PC is the
perfect solution for all your industrial needs.
Features:
- Product Name: Touch Panel PC
- CPU: Intel Core I3/i5/i7
- OS: Windows/Android/Linux
- Size: Customize
- Color: Customize
- Audio: Built-in Speaker Microphone
- IP65 Waterproof All in One Touch Industrial PC
- All in One Embedded Industrial Android Panel PC
Size | 10.1"(diagonal) | 15"(diagonal) | 19"(diagonal) | 21.5"(diagonal) |
Display Area | 305mm*229mm | 305mm*229mm | 376.3mm*301.1mm | 476.1mm*267.8mm |
Display Resolution | 1024*768 | 1024*768 | 1280*1024 | 1920*1080 |
Supported Colors | 16.7M | 16.7M | 16.7M | 16.7M |
Brightness (Typical) | 300cd/m2 | 300cd/m2 | 250cd/m2 | 250cd/m2 |
Response Time (Typical) | 8ms | 8ms | 5ms | 20ms |
Viewing Angle | Horizontal:89°(L)/89° (R) | Horizontal:89°(L)/89° (R) | Horizontal:89°(L)/89° (R) | Horizontal:89°(L)/89° (R) |
| Vertical:89°(U)/89° (D) | Vertical:89°(U)/89° (D) | Vertical:89°(U)/89° (D) | Vertical:89°(U)/89° (D) |
Contrast Ratio(Typical) | 2000:1 | 2000:1 | 1000:1 | 3000:1 |
Video Output Format | VGA/HD-MI-compatible | VGA&HD-MI-compatible | VGA&HD-MI-compatible | VGA&HD-MI-compatible |
Display Frame Frequency | 30~80KHz / 60~75Hz | 30~80KHz / 60~75Hz | 30~80KHz / 60~75Hz | 30~80KHz / 60~75Hz |
Power Supply | Type: External power adapter | Type: external power adapter | Type: external power adapter | Type: external power adapter |
Input Voltage: 100-240 V AC, 50-60 Hz | Input voltage: 100-240 V AC, 50-60 Hz | Input voltage: 100-240 V AC, 50-60 Hz | Input voltage: 100-240 V AC, 50-60 Hz |
Output Voltage/Current: 12 volts at 3amps max | The output voltage: 12 volts at 1 amps Max | | |
Environment | Operating Temperature:-20~70°C | Operating Temperature:-20~70°C | Operating Temperature:0-50°C | Operating Temperature:0-50°C |
Storage Temperature:-30~70°C | Storage Temperature:-30~70°C | Storage Temperature:-20~60°C | Storage Temperature:-20~60°C |
Operating Humidity:10%~90% | Operating Humidity:10%~90% | Operating Humidity:10%~90% | Operating Humidity:10%~90% |
Storage Humidity:10%~90% | Storage Humidity:10%~90% | Storage Humidity:10%~90% | Storage Humidity:10%~90% |
MTBF | 50,000 h | 50,000 hours | 50,000 hours | 50,000 hours |
LED Backlight Life (Typical) | 70,000 h | 70,000 hours | 30,000 hours | 30,000 hours |
CPU | J1900/I3/I5/RK3288(Optional) | J1900/RK3288(Optional) | RK3288/ J1900 optional | J1900/1037/I3/I5 RK3288 optional |
RAM | 2G/4G/8G | 4G | 2G | DDR3 2G/4G optional |
SSD | 64GB/128G | 128G | 8G | SSD 64G/128G/256G optional |
Network Support | RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE (optional) | RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal) | RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal) | RJ45/Wifi/BT4.0/GPS/3G WCDMA/4G TD-LTE(optioal) |
Image Format Support | JPG/BMP/GIF/TIFF/PNG | JPG/BMP/GIF/TIFF/PNG | JPG/BMP/GIF/TIFF/PNG | JPG/BMP/GIF/TIFF/PNG |
Support Video | RMVB, FLV, MPEG1/2/4, AVI,WMV,MOV,MP4,TS | RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS | RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS | RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS |
Interface | USB | USB | USB*4,RS232*2,RJ45*1 | USB*4,RS232*2,RJ45*1 |
Technical Parameters:
The product has many advantages. It is light in weight and easy to
install, does not occupy much indoor space, and can be matched with
multiple colors for customers to choose according to their needs.
It is convenient and simple to use after installation, and has a
good energy-saving effect, which can reduce energy consumption and
effectively save electricity bills. In addition, it provides a
quiet working environment, does not produce too much noise during
the operation, and will not interfere with people's rest and work.
Our product has numerous advantages that customers can take
advantage of. It is extremely lightweight and simple to install,
taking up minimal indoor space. It is also widely customizable,
with an array of colors for customers to choose from, suiting their
needs and tastes. Moreover, it is conveniently simple to use,
promoting an energy-saving effect while reducing the burden of
electricity bills. Last but not least, the product creates an ideal
working environment, as it produces little to no noise during
operation, ensuring that it does not interfere with essential daily
activities and rest.
Applications:
Crtly is a professional supplier of industrial grade touch panel PC
products with CE, RoHS, and HDMI certifications. Its industrial
all-in-one computer touch panel PCs are designed for harsh
environment applications, such as factory automation, outdoor
kiosk, vehicle-mounted, and other industrial environments. It is
IP65 waterproof certified and supports Intel Core i3/i5/i7 CPU,
LED, IPS, OLED display, 4GB/8GB/16GB RAM, Wi-Fi/Bluetooth/USB
connectivity, built-in speaker and microphone. Its minimum order
quantity is 1 piece, and it provides flexible payment terms, such
as L/C, D/A, D/P, T/T, Western Union, MoneyGram, and delivery time
is 5-25 days. It can also provide 500 pieces per month for large
orders.
Customization:
Customization services for Touch Panel PC are available at Crtly. Our industrial PC IP65 waterproof
industrial panel PC, inch industrial touch screen Android panel PC
and industrial computer touch screen all in one PC are of high
quality and come with CE, Rosh, HDMI certification. The minimum
order quantity is 1 PC and the price is negotiable.
Support and Services:
Technical Support and Services for Touch Panel PC
- Provide technical support through phone, email and online chat
- Provide on-site technical service and support
- Provide maintenance services and upgrades
- Provide software installation, troubleshooting and technical advice
- Provide hardware repair, replacement and maintenance
- Provide regular system updates
- Provide backup and recovery services
- Provide system security services
